The illusion of good medical device design

Paul Curzon, Queen Mary University of London

This page includes extra resources to support the talk by Paul Curzon on interaction design, human error and the design of medical devices. Paul will next be giving the talk at:

Summary

Using illusions, puzzles and examples of good and bad medical device design, we explore how programmers can prevent medical error with good interaction design. When disasters occur, human error is often given as the reason, but even experts make mistakes using poor technology. Rather than blame the person, human error should be seen as a design failure. Bad design can make mistakes more likely and good design can often eliminate them. This is especially important if the gadgets are medical devices where mistakes can have enormous consequences. The best computer scientists and programmers don’t just understand technology, they understand people too, and especially our fallibilities. If they don’t, then mistakes using their software and gadgets are more likely. If people make mistakes, don’t blame the person, fix the design and save lives.

Illusions

Optical illusions and magic tricks give a mirror on the limits of our brains. Even when you know an optical illusion is an illusion you cannot stop seeing the effect. For example, this image of an eye is completely flat and stationary: nothing is moving. And yet if you move your head very slightly from side to side the centre pops out and seems to be moving separately to the rest of the eye.

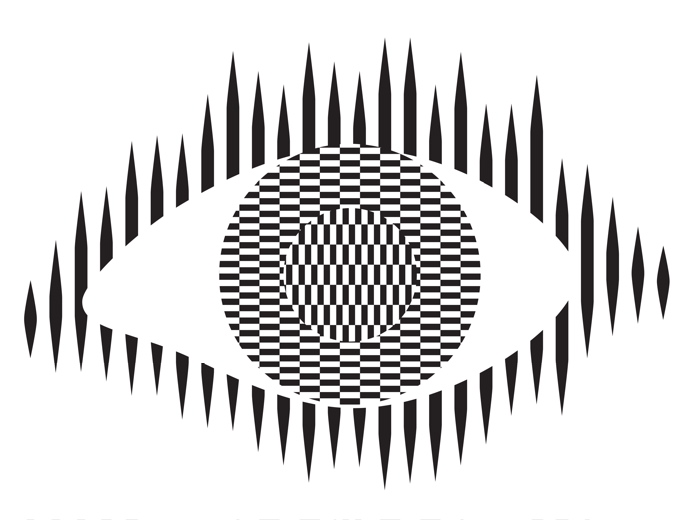

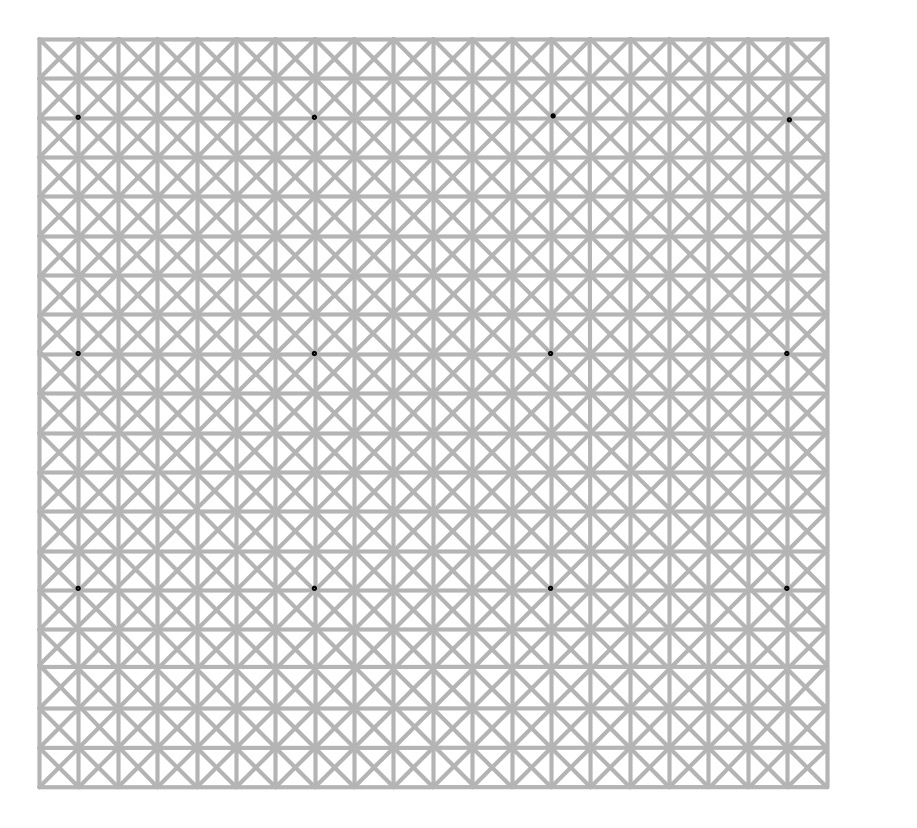

Illusions occur because our brains have limited resources and take short cuts in processing the vast amount of information that our senses deliver. These short cuts allow us to understand what we see faster and do so with less resources. Illusions happen when the short cuts are applied in a way where they do not apply.

What this means is that we do not see the world as it really is but see a simplified version constructed by our subconscious brain and provided to our conscious brain. It is very much like in the film, the Matrix, except it is our own brains providing the fake version of the world we experience rather than alien computers.

Watch out for our new book on “Conjuring with Computation” for more on the links between computing, interaction design and magic. Out later this year.

Our brains also have very limited working memory and limited attention. Magicians exploit this to design “magical systems” where a whole audience make the same mistake at the same time. Design the magic well so that these limitations are triggered and people miss things that are there to be seen, forget things they knew a few moments before, and so on. For example, by distracting their attention they make them miss something that was there to be seen.

What does this mean to computer scientists?

When we design the way we interact with a computer system, whether software and hardware, it is also possible to trigger the same limitations a magician or optical illusion does. A good interaction designer therefore does the opposite to a magician and, for example: draws a user’s attention to things that must not be missed at a critical time; they ensure they do not forget things that are important, they help them keep track of the state of the system, they give good feedback so they know what has happened.

Most software is poorly designed leading to people making mistakes, not all the time, but some of the time. The best designs will help people avoid making mistakes and also help them spot and fix mistakes as soon as they do make them.

With some software the fact that mistakes are easy to make when using them might just be an irritation. However, when the devices concerned are medical devices, mistakes by nurses or doctors using them can be a matter of life and death for the patient. It is vital that such devices (both software and hardware) are designed to make human error rare and easy to detect and correct when it does happen.

Examples of poor medical device design

The following are examples of the interfaces of actual medical devices found in a day of exploration by one researcher (Paolo Masci) at a single very good hospital (in the US). Many more issues were found in many, many medical devices.

Work out what is wrong and how you think it might be designed better before reading on in each case…

Problem 1

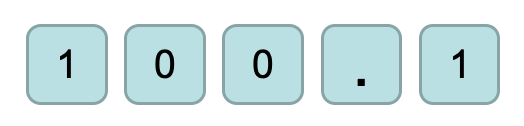

When the nurse or doctor types as a dose rate of drug the key sequence:

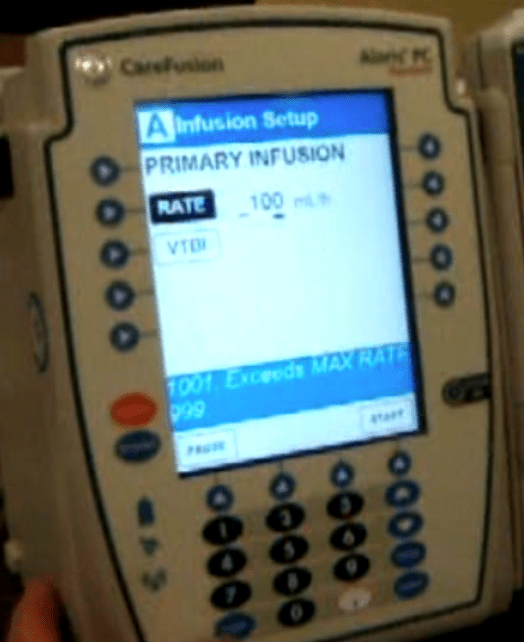

this infusion pump, without any explicit warning, other than the number being displayed, registers the number entered as 1001.

Probably, the programmer has been told that when doses are as large as 100, then fractional doses are so relatively small that they make no difference. It is likely an error as such a dose is unlikely to be prescribed. The typing of the decimal point is therefore just ignored as a mistake. Separately, until an ENTER key is pressed the code treats the number as incomplete, so any further digits are just accepted as part of the number.

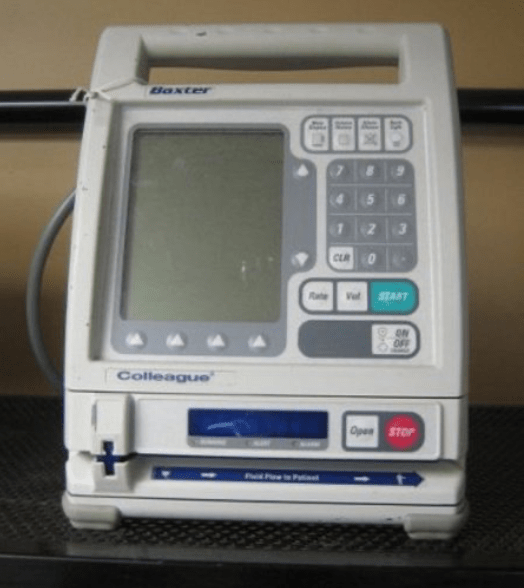

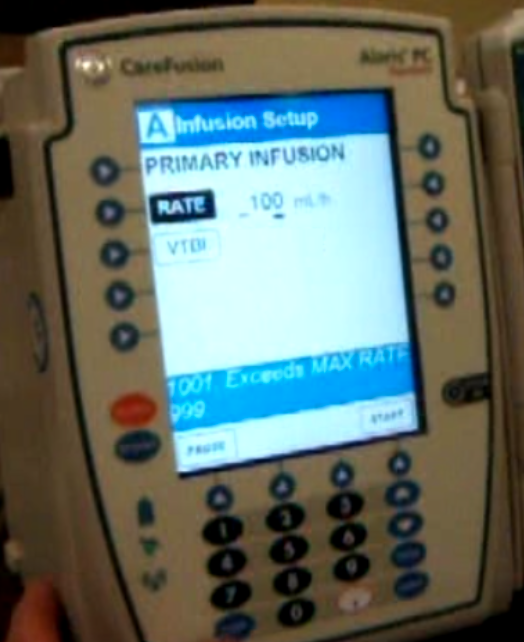

This different design by a different manufacturer also treats the key sequence as 1001 (though for a completely different reason in the case shown 1001 is rejected as it exceeds the maximum allowable rate.

What is wrong with that?

Devices should never silently ignore / correct input if mistakes are to be avoided. Here it potentially leads to a dose 10x too big being infused into a patient which could kill. It relies on the person typing the number noticing that the decimal point has been ignored (with no help from the device). Their attention cannot be guaranteed to be on the machine and, in fact, with a digit keypad is likely to be on the keys. Alarms or other distractions elsewhere could easily mean they do not notice the missing decimal point (which is a tiny thing to see).

An everyday example of the same kind of problem, showing how easily mistakes are missed is in auto-completion / auto-correction of spelling mistakes in texts and word processors. Goofs where an auto-corrected word are missed are very common.

Solutions

The machine does not know what a user is trying to input so should not correct any error silently. Here perhaps the mistake was pressing 0 twice rather than pressing the decimal point. It should raise awareness of the error, and in the case of a medical device not allow further input until the error is corrected. The device should explicitly draw the person’s attention to the problem (eg changing colour, flashing, beeping, etc). It should make clear in an easily understandable error message what the problem is (eg here “Doses over 99 should not include decimal fractions. Please delete the decimal point.”) It should then leave the user to make the correction (eg deleting the decimal point).

Ideally a number entry system such as using cursor keys to enter the number rather than a digit keypad should be used as then the attention of the user is more likely to be on the number entered in the first place.

Problem 2

If the user forgets to press OK at the end of entering a number and presses something else (or just takes too long), then the values that had been entered are again silently ignored.

If OK is not pressed then the programmer assumed that the user decided they no longer wanted to enter it.

These ventilators, which are machines that keep people alive by helping them breathe behave the same way.

What is wrong with that?

The consequence of this is that a number a nurse or doctor thinks they have entered may not have been. That may, for example, mean when they start the device, it actually uses a default or previous value instead, unknown to the user. Again the ultimate problem is that the device is assuming that it knows what the person intended, when it does not. As multiple numbers often need to be entered, the person may just have moved on to the next number. When we have a series of things to do (“goals”) people can easily miss such final confirmation steps and start on their next goal. Also a nurse may be called away to deal with an alarm or emergency elsewhere. The pressing of OK is in some sense an arbitrary step that is not part of the way the person thinks about the task.

Solutions

Rather than silently drop the number as in the previous step, the user should be asked to confirm if that is what they wish to do, or whether they wish to complete it, or use it as is. In some situations, perhaps a confirmation step is not needed at all, and pressing the next button to start the next task, is enough to confirm the value entered.
